MBR0540-TP
Manufacturer:
Micro Commercial Components
Mfr.Part #:
MBR0540-TP
Datasheet:
Description:

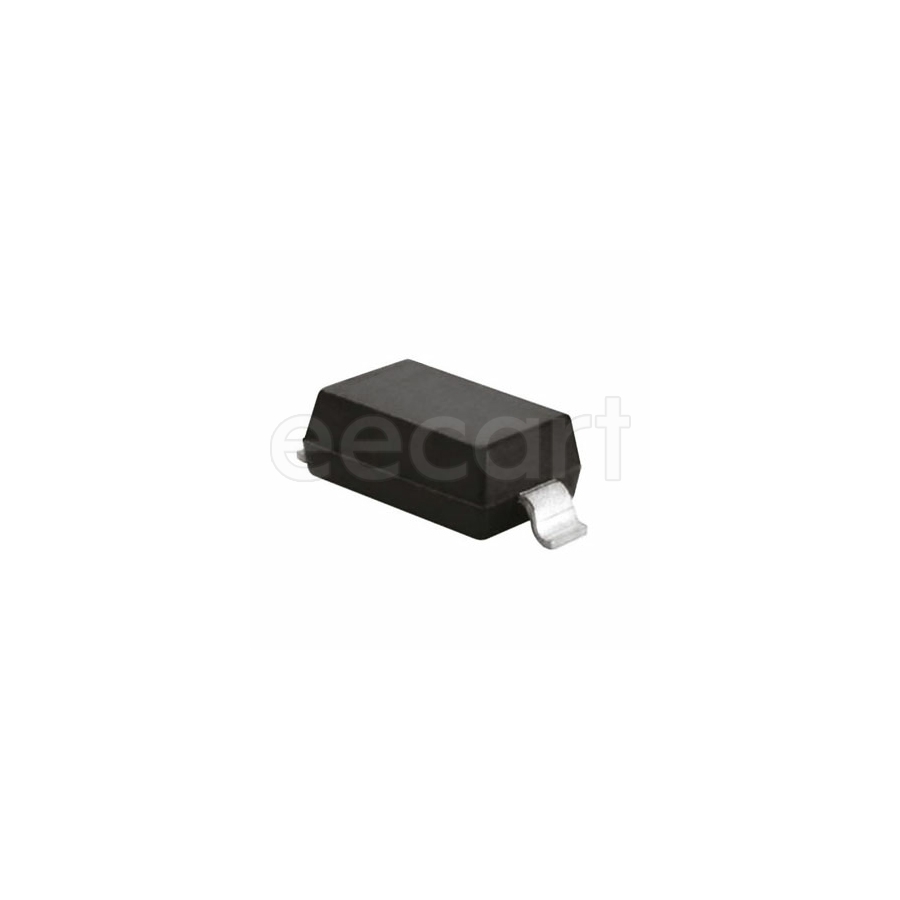

Schottky Diodes SOD-123-2 SMD/SMT Single Forward Current:500 mA Forward Voltage:550 mV Max Repetitive Reverse Voltage (Vrrm):40 V Max Forward Surge Current (Ifsm):5.5 A
| Parameter | Value |
|---|---|
| Capacitance | 30 pF |
| Voltage Rating (DC) | 40 V |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Height | 1.35 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Current Rating | 500 mA |
| Output Current | 500 mA |
| Forward Current | 500 mA |
| Forward Voltage | 550 mV |
| Average Rectified Current | 500 mA |
| Max Repetitive Reverse Voltage (Vrrm) | 40 V |
| Element Configuration | Single |
| Forward Surge Current (Ifsm) | 5.5 A |
| Reverse Voltage | 40 V |
| Max Junction Temperature (Tj) | 125 °C |
| Peak Non-Repetitive Surge Current | 5.5 A |
| Reverse Current | 100 µA |
| Schedule B | 8541100070 |
Stock: 33625
Distributors
pcbx
pcbxUnit Price$0.11285
Ext.Price$0.11285
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.11285 | $0.11285 |
| 10 | $0.07070 | $0.70700 |
| 50 | $0.05563 | $2.78150 |
| 100 | $0.04377 | $4.37700 |
| 500 | $0.03189 | $15.94500 |
| 1000 | $0.02941 | $29.41000 |
| 3000 | $0.02693 | $80.79000 |
| 5000 | $0.02317 | $115.85000 |
